(TBench) 2.11 Summary of Reactive Test Bench Tutorial

Previous topic Next topic

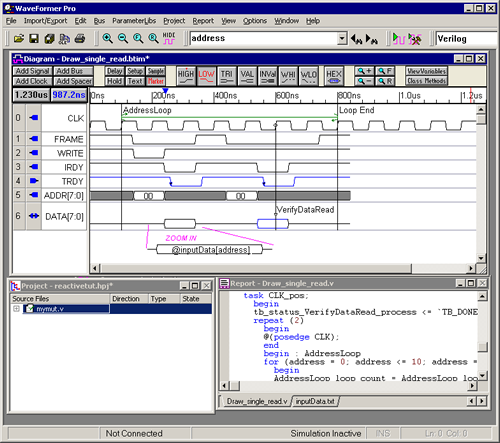

Congratulations, you have completed the Reactive Test Bench Tutorial. You have created a self-testing test bench that uses a sample to test data coming back from the model under test. You have drawn both the stimulus vectors to drive the model under test and the expected waveforms that should come back from the model under test. You have experimented with edge sensitive control and with samples that block the test bench until a particular state is received. You have also added a loop that allows waveforms to be applied to the model under test without having to redraw the transactions over and over again.

Reactive_tut_finial
