SynaptiCAD's tools use a language independent signal type so that one timing diagram can generate code for both VHDL and Verilog test benches. Double click on a signal name to open the Signal Properties dialog and the Signal Type box shows the signal's type. Below is a table that shows the translation between the types.

SynaptiCAD

Verilog

VHDL

4_state

reg

std_logic

4_state_vector

reg

std_logic_vector

bool

reg

boolean

2_state

reg

bit

2_state_vector

reg

bit_vector

byte

reg

bit_vector

int

integer

integer

unsigned_int

integer

natural

real

real

real

fixed_len_string

reg

string

variable_len_string





time

time

time

event

event



std_logic



std_logic

std_logic_vector



std_logic_vector

std_ulogic



std_ulogic

std_ulogic_vector



std_ulogic_vector

signed_logic



signed

unsigned_logic



unsigned

actel_current_delta

reg

std_logic

actel_temperature

reg

std_logic

actel_voltage

reg

std_logic

actel_voltage_common

reg

std_logic

actel_voltage_delta

reg

std_logic

The Signal Type box also supports VHDL user-defined types that can be directly entered into the box. By default all signals are assumed to have a type of std_logic and a direction of out (CLK0, SIG0, and VirtualBus will use the defaults for this tutorial). In this section you will add SIG1 and SIG2 to demonstrate signals with a standard integer type and a user defined type.

Add SIG1 and SIG2

Click on the Add Signal button two times to add two signals.

add_signals

Press the VAL button two times (not a double click). The first click selects Valid as the initial graphical state, and the second click selects Valid as the toggle state (as indicated by the red T). This causes the VAL button to stay selected when you draw waveform segments.

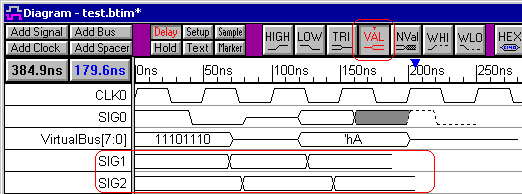

Sketch some valid waveforms for SIG1 and SIG2 similar to those in the figure below.

diagram3-hdlStimulus-drawnValidSegments

Change the type of SIG1 to integer and add values to the waveform:

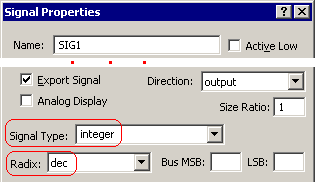

Double-click on the SIG1 signal name to open the Signal Properties dialog.

Choose integer from the Signal Type box.

Choose dec from the Radix box to indicate that the values you will be entering into the virtual state are decimal values.

Press OK to close the dialog.

sig1_properties_dlg

Double-click on the first waveform segment on SIG1 to open the Edit Bus State dialog.

Enter integer values for each segment (we used 25, 50, 47). Use the Next button to move between segments.

sig1_waveform

Change the type of SIG2 to MyColor and add values to the waveform:

Next we will add a user defined data type called MyColor. For a real VHDL simulation, the user defined type and the color value of the waveforms would have to match the code in the model under test. For instance, MyColor might be defined as: enum MyColor ={RED, GREEN, BLUE, BLACK} in the model under test code.

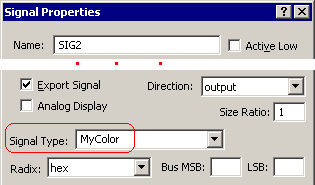

Double-click on the SIG2 signal name to open the Signal Properties dialog.

Type in MyColor into the Signal Type box. MyColor is the name of the user defined type that we will use.

Press OK to close the dialog.

sig2_properties_dlg

Double-click on the first waveform segment on SIG2 to open the Edit Bus State dialog.

Enter some color value for each segment (we used RED, GREEN, BLUE).

Click OK to close the dialog

sig2_waveform

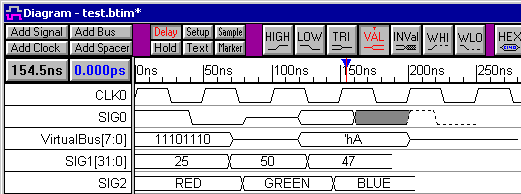

Your timing diagram should resemble the figure below.

diagram4-hdlStimulus-UDTvirtualStates
