Waveperl Script for QuickSlim II

WaveFormer ships with a Waveperl script for exporting waveforms to Mentor's QuickSim II simulator. The script produces a complete test bench that can be directly used by the Mentor Graphics QuickSim II simulator.

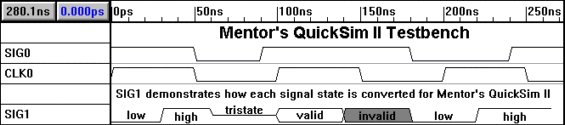

To demonstrate the Mentor exporting features we will export the following timing diagram using the Mentor script.

Click here to see the timing diagram

Mentor QuickSim II test bench generated by WaveFormer

$set_user_scale("time",1e-12);
FORCe SIG0		0		1
FORCe SIG0		50000		0
FORCe SIG0		90000		1
FORCe SIG0		180000		0
FORCe SIG0		240000		1

FORCe SIG1		0		0
FORCe SIG1		30000		1
FORCe SIG1		60000		Z
FORCe SIG1		100000		X
FORCe SIG1		140000		X
FORCe SIG1		180000		0
FORCe SIG1		220000		1

$$force_clock_menu_item(CLK0, 100000, 0, "1", 50000, "0",
                         void, @relative, @clear);
run 280000
